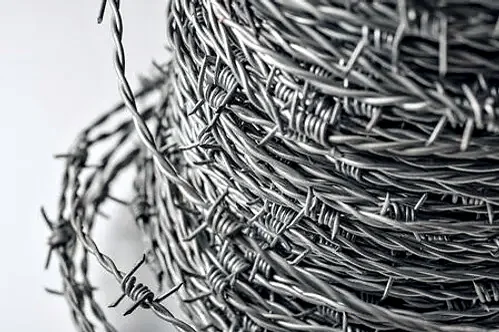

Barbed Wire
Two strands twisted, barbs at fixed spacing.
Applications
As per Indian Standards
These are the Indian Standards Barbed Wire is commonly supplied to. Where one is quoted, the published standard governs, not our summary of it.
| Standard | IS 278 |
|---|---|
| Base wire | IS 280 |
| Coating | IS 4826, as agreed with the purchaser |
| Barb length | Not less than 13 mm and not more than 18 mm, per IS 278 |
| Barbs | Well formed and tightly wrapped |
| HSN | 73130010 |
| GST | 18% |
HSN codes are given for reference and are to be confirmed with the supplier before billing.
| Standard | What it covers | Where we use it |
|---|---|---|
| IS 278 | Galvanized steel barbed wire for fencing | Barbed wire |
| IS 280 | Mild steel wire for general engineering purposes | HB, binding and GI wire |
| IS 4826 | Hot dipped galvanized coatings on round steel wires | GI wire, barbed wire, fencing |
Indian Standards are published by the Bureau of Indian Standards and are their property. They are named here so you can check a figure against the source, and quoted only as far as is needed to say what a number means. A material test certificate travels with the vehicle.
Every IS 278 size, two strand
| Size | Line / point wire (mm) | Barbs every | g per metre | Metres per kg | Metres in 25 kg | What it is for |
|---|---|---|---|---|---|---|
| 1 | 2.50 / 2.50 | 75 mm | 136–155 | 6.5–7.4 | 161–184 | Plants and compounds |
| 2 | 2.50 / 2.50 | 150 mm | 108–120 | 8.3–9.3 | 208–231 | Farms and plots |
| 3 | 2.50 / 2.00 | 75 mm | 108–125 | 8.0–9.3 | 200–231 | Plants and compounds |
| 4 | 2.50 / 2.00 | 150 mm | 89–103 | 9.7–11.2 | 243–281 | Farms and plots |
| 5 | 2.24 / 2.00 | 75 mm | 97–106 | 9.4–10.3 | 236–258 | Boundaries and perimeters |
| 6 | 2.24 / 2.00 | 150 mm | 78–85 | 11.8–12.8 | 294–321 | Boundaries and perimeters |
Weights are the minimum and maximum in IS 278:2009 Table 1, and the metres follow from them. Closer barbs mean more point wire, so size 1 at 75 mm is heavier per metre than size 2 at 150 mm on the same line wire. Every size is the two strand construction: two line wires twisted together, with four-point barbs 13 to 18 mm long wrapped two to seven lays. Gauge. Barbed wire is still ordered by gauge: 12 gauge is about 2.5 mm, IS 278's 2.50 mm line wire; 13 gauge about 2.24 mm; 14 gauge about 2.00 mm, the point wire for sizes 3 to 6. A 12 x 14 barbed wire is 2.50 mm line with 2.00 mm points, which is size 3 or 4 depending on the barb spacing. Order by designation, for example Steel Barbed Wire, A-1 IS 278: Type A is the Iowa pattern, size 1. We supply it in 25 and 50 kg rolls; a 50 kg roll runs twice the metres in the column above. Clause 14 of the standard fixes no coil weight, only that the wire is wound on reels and fastened compactly. The last column is what each is usually bought for. That is trade practice, not something the standard fixes, so tell us the job if it is not one of these.
IS 278:2009, Table 1 and clauses 3.1, 4, 7.2 and 14, via Public.Resource.Org
