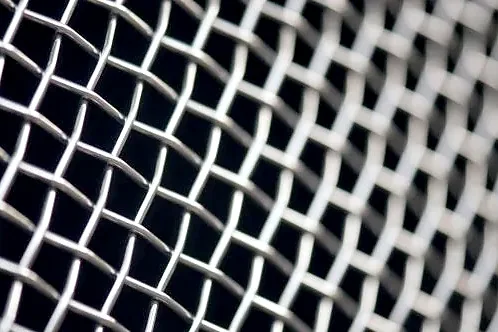

Wire Mesh
Welded steel wire fabric.
Applications
As per Indian Standards
These are the Indian Standards Wire Mesh is commonly supplied to. Where one is quoted, the published standard governs, not our summary of it.
| Standard | IS 4948 |
|---|---|
| Covers | Welded steel wire fabric for general use |
| Aperture and wire diameter | To your requirement, confirmed at enquiry |
| Form | Sheets or rolls |
| HSN | 73142000 or 73143900, by mesh and wire |
| GST | 18% |
HSN codes are given for reference and are to be confirmed with the supplier before billing.
| Standard | What it covers | Where we use it |
|---|---|---|
| IS 4948 | Welded steel wire fabric for general use | Wire mesh |
Indian Standards are published by the Bureau of Indian Standards and are their property. They are named here so you can check a figure against the source, and quoted only as far as is needed to say what a number means. A material test certificate travels with the vehicle.
IS 4948:2002, Annex A, the square mesh sizes commonly available
| Pitch of wire | Wire diameter each way | What it is for |
|---|---|---|
| 15 mm | 1.60 mm | Plaster and rendering |
| 20 mm | 2.00, 2.50 or 3.15 mm | Cages and guards |
| 25 mm | 2.00, 2.50 or 3.15 mm | Cages and guards |
| 37 mm | 2.50 or 3.15 mm | Fencing panels |
| 50 mm | 2.50, 3.15, 3.55, 4.00 or 4.50 mm | Fencing panels |
| 75 mm | 2.50, 3.15, 3.55, 4.00, 4.50, 5.00 or 5.60 mm | General construction |
Annex A is titled the sizes commonly available in the country, so it is a guide to what is made rather than a restriction. Oblong mesh is listed separately at 50 x 25 mm and 75 x 25 mm and 75 x 50 mm, in wires from 2.50 to 5.60 mm, and the two directions need not match. The fabric comes as flat sheets or rolls; clause 8 bundles sheets in lots of not more than 150, securely fastened, and requires a roll to be secured against unwinding and telescoping in transit. No sheet size or roll length is fixed by the standard, so tell us the size you want. The last column is what each is usually bought for. That is trade practice, not something the standard fixes, so tell us the job if it is not one of these.
IS 4948:2002, Annex A and clause 8, via Public.Resource.Org
