Chain Link

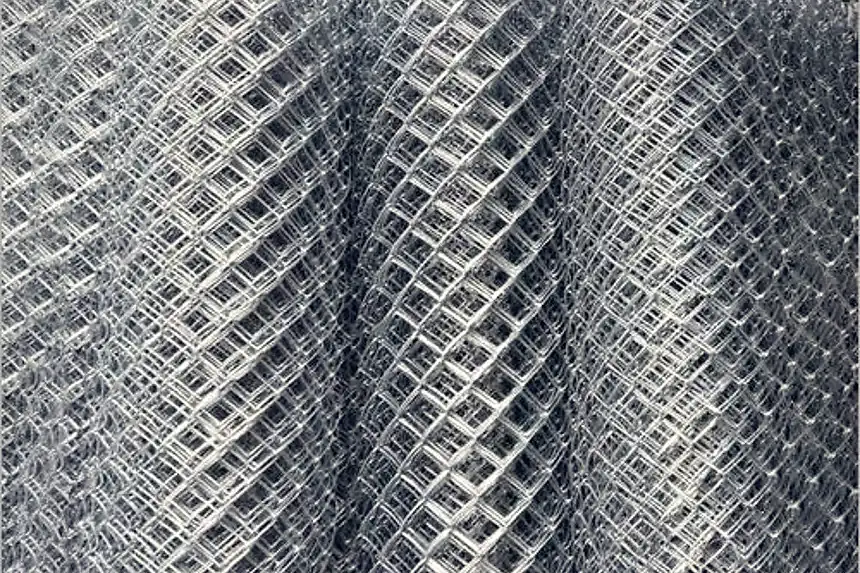

Galvanized diamond mesh fence fabric.
Applications
As per Indian Standards
These are the Indian Standards Chain Link is commonly supplied to. Where one is quoted, the published standard governs, not our summary of it.
| Standard | IS 2721 |
|---|---|
| Mesh size | 28 options between 25 mm and 150 mm, per IS 2721 |
| End treatment | Four schedules: both ends twisted, one knuckled and one twisted, both knuckled, or neither |
| Height and length | To your requirement, confirmed at enquiry |
| HSN | 73144100 |
| GST | 18% |
HSN codes are given for reference and are to be confirmed with the supplier before billing.
| Standard | What it covers | Where we use it |
|---|---|---|
| IS 2721 | Galvanized steel chain link fence fabric | Chain link |
Indian Standards are published by the Bureau of Indian Standards and are their property. They are named here so you can check a figure against the source, and quoted only as far as is needed to say what a number means. A material test certificate travels with the vehicle.
Chain link weight in grams per square foot, by opening and wire
| Opening | 12 SWG, 2.50 mm | 11 SWG, 3.00 mm | 10 SWG, 3.20 mm | 8 SWG, 4.00 mm | What it is for |
|---|---|---|---|---|---|
| 2" | 180 | 240 | 273 | 425 | Sports grounds and security |
| 2.25" | 160 | 215 | 245 | 380 | Compounds |
| 2.5" | 135 | 180 | 205 | 320 | Compounds |
| 3" | 110 | 165 | 188 | 300 | Perimeters |
| 4" | 93 | 120 | 137 | 220 | Farm boundaries |
| 5" | 83 | 110 | 125 | 200 | Farm boundaries |
Multiply by the area you are covering to get the weight. We supply 2.50 to 3.00 mm and 4 mm wire at 40 to 100 gsm of zinc, in mesh openings of 2, 2.5, 3 and 4 inch, compacted. The gauge names above are the trade ones: 12 SWG is 2.642 mm and 10 SWG is 3.251 mm exactly, and the trade rounds them. IS 2721:2003 is the standard behind it. It makes the fabric in widths of 0.90, 1.20, 1.50, 1.80, 2.00, 2.50 and 3.00 m and rolls of 5, 10, 15, 20 and 25 m, measured fully stretched, and pairs each mesh wire with a line wire one size up. Fabric to 2 m takes two line wires, 2.50 m and over takes three. The standard fixes no bundle weight, only that a roll is bound and fastened compactly. The last column is what each is usually bought for. That is trade practice, not something the standard fixes, so tell us the job if it is not one of these.
Weights from the KHERO working sheet, October 2026; sizes and supply from IS 2721:2003, clauses 6.3, 6.4, 7.2 and 11, via Public.Resource.Org
