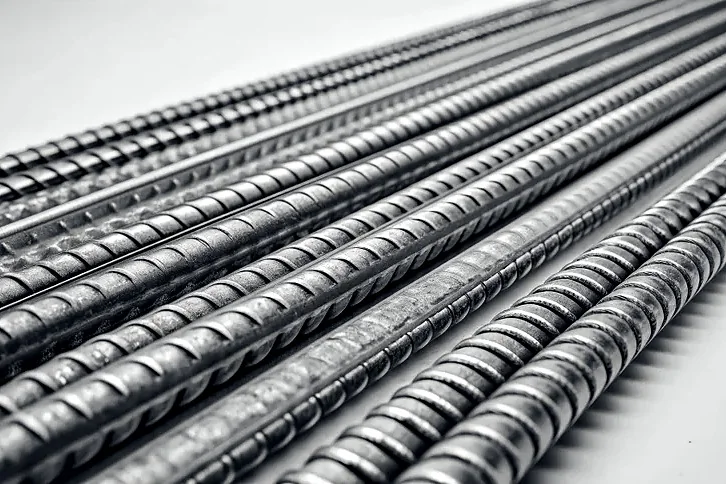

TMT Bars
Ribbed reinforcement bar for concrete.
Applications
As per Indian Standards
These are the Indian Standards TMT Bars is commonly supplied to. Where one is quoted, the published standard governs, not our summary of it.
| Standard | IS 1786 |
|---|---|
| Grades | Fe415, Fe500, Fe500D, Fe550, Fe550D, Fe600 |
| The D suffix | Enhanced ductility. Commonly specified for seismic zones III and IV |
| Diameter | To your requirement, confirmed at enquiry |
| HSN | 72142010 |
| GST | 18% |
HSN codes are given for reference and are to be confirmed with the supplier before billing.
| Standard | What it covers | Where we use it |
|---|---|---|
| IS 1786 | High strength deformed steel bars and wires for concrete reinforcement | TMT bars |
Indian Standards are published by the Bureau of Indian Standards and are their property. They are named here so you can check a figure against the source, and quoted only as far as is needed to say what a number means. A material test certificate travels with the vehicle.
IS 1786:2008, mass and tolerance for the sizes that move, at the 12 MTR standard length
| Size | Mass per MTR | A 12 MTR bar | Tolerance, batch | A bar may weigh, kg | Bars in 1 MT |
|---|---|---|---|---|---|
| 6 mm | 0.222 kg | 2.66 kg | ±7% | 2.48–2.85 | 350–404 |
| 8 mm | 0.395 kg | 4.74 kg | ±7% | 4.41–5.07 | 197–227 |
| 10 mm | 0.617 kg | 7.40 kg | ±7% | 6.89–7.92 | 126–146 |
| 12 mm | 0.888 kg | 10.66 kg | ±5% | 10.12–11.19 | 89–99 |
| 16 mm | 1.580 kg | 18.96 kg | ±5% | 18.01–19.91 | 50–56 |
| 20 mm | 2.470 kg | 29.64 kg | ±3% | 28.75–30.53 | 32–35 |
| 25 mm | 3.850 kg | 46.20 kg | ±3% | 44.81–47.59 | 21–23 |
| 28 mm | 4.830 kg | 57.96 kg | ±3% | 56.22–59.70 | 16–18 |
| 32 mm | 6.310 kg | 75.72 kg | ±3% | 73.45–77.99 | 12–14 |
Table 2 of IS 1786:2008 sets the tolerance on nominal mass: ±7 percent on a batch up to and including 10 mm, ±5 percent over 10 and up to 16 mm, and ±3 percent over 16 mm. On an individual sample only the minus side is specified, at 8, 6 and 4 percent for the same three bands, and for coils the individual figure is ±8, ±6 and ±4 percent. Clause 7.1 allows a cut length to deviate by plus 75 and minus 25 mm. The mass in this table is the nominal mass, which clause 7.2.1 defines at a density of 0.00785 kg per square millimetre per metre.
IS 1786:2008, Table 1 and Table 2, via Public.Resource.Org
