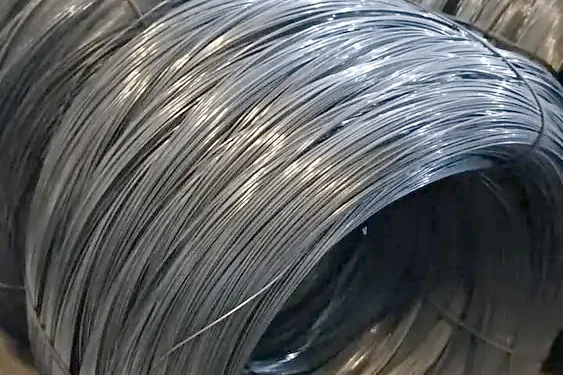

Binding Wire
Annealed wire, soft enough to twist by hand.
Applications
As per Indian Standards
These are the Indian Standards Binding Wire is commonly supplied to. Where one is quoted, the published standard governs, not our summary of it.
| Standard | IS 280 |
|---|---|
| Condition | Annealed, for flexibility |
| Sizes | 0.90 and 1.20 mm, which the trade calls 20 and 18 SWG |
| Packing | Coils, to your requirement |
| HSN | 72171090 |
| GST | 18% |
HSN codes are given for reference and are to be confirmed with the supplier before billing.
| Standard | What it covers | Where we use it |
|---|---|---|
| IS 280 | Mild steel wire for general engineering purposes | HB, binding and GI wire |
Indian Standards are published by the Bureau of Indian Standards and are their property. They are named here so you can check a figure against the source, and quoted only as far as is needed to say what a number means. A material test certificate travels with the vehicle.
Binding wire, the gauges supplied and how they are packed
| Diameter | SWG | Weight per MTR | Metres per kg | Packed as | What it is for |
|---|---|---|---|---|---|
| 0.90 mm | 20 G | 0.0050 kg | 200.0 m | 2, 5 or 25 kg | Tying reinforcement on site |
| 1.20 mm | 18 G | 0.0089 kg | 112.5 m | 2, 5 or 25 kg | RCC work and general site use |
| 1.60 mm | 16 G | 0.0158 kg | 63.3 m | 2, 5 or 25 kg | Heavier tying and bundling |
Worked from d squared over 162, steel at 7850 kg per cubic metre, so it is the steel itself. Black annealed and soft enough to twist by hand. The gauge names are nominal: 20 SWG is 0.914 mm, 18 SWG is 1.219 and 16 SWG is 1.626 exactly, and the trade rounds them to 0.90, 1.20 and 1.60. Coils run 5 to 25 kg, with a 2 kg pack for small lots. IS 280 covers mild steel wire and sets the tolerance on diameter. The last column is what each is usually bought for. That is trade practice, not something the standard fixes, so tell us the job if it is not one of these.
Sizes and packing from the KHERO working sheet, October 2026
